Circuit Diagram

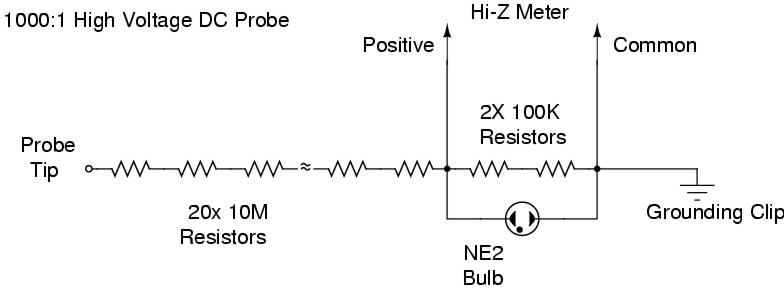

Richard Solis writes "Hi, do you have a schematic for your high voltage probe?" Here you go Richard, just remember that the grounding clip is essential, and if it is connected to a non-ground potential the whole probe and meter will float at this potential and probably bite you, same as if you accidentally forget to connect it. If you must measure the voltage across two hot points measure them relative to ground and calculate the difference.

dc probe circuit

Leave a comment on this article.

Parent article: High Voltage Probes.
