Marx Generator

The Marx Generator is a simple way to generate lots of voltage. It isn't a new idea, charge up a stack of capacitors in parallel, discharge them in series. When you use high voltage capacitors and spark gap commutators the resulting sparks are quite impressive.

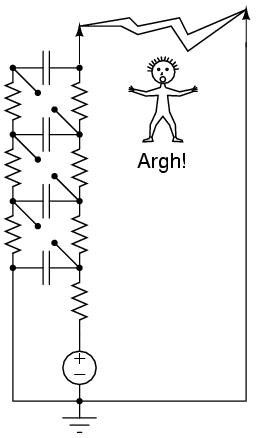

marx generator diagram

If cheap loud and long sparks are your aim, a Marx generator delivers them with excellent simplicity. Just a slack handful of bits and pieces (although somewhat exotic devices are required) will build you a respectable noise and light show that can be powered nicely with a flyback or similar source of kilo-voltage DC.

If you are going for maximum spark length and pushing the corona and breakdown limits then Marx generators are not the best, they are pulse mode (sparks) not continuous arc/flame markers. A Tesla coil would be a better project.

Marx generators make excellent lightning simulators. They are also very hostile to surrounding equipment, as my power supply well knows. My first simple proof of concept device fried my bench PSU after a few shots. Be careful they can bite you very hard too! I carefully discharge each stage before handling it, but now and then I've missed a cap and got bitten, it hurts.

Unlike Cockcroft-Walton multipliers, the Marx Generator needs no diodes, and only uses one cap per stage. This reduces their cost enormously, at the expense of the mechanical complexity of the spark gaps. Give one a go, you'll love 'em!

Leave a comment on this article.


title type size
marx generator diagram postscript source application/postscript 11.688 kbytes


2003-02-09: Quickie Marx Generator
Built to show ceramic caps are generally OK for Marx service.
2003-01-28: Knowing Your Coronatron
Characterizing the testing supply, and some more thoughts towards building "the big one" some day.
2003-01-27: A Bigger Marx Generator
More new capacitors lead to a multi-Joule device.
2003-01-14: Choke Charging Experiments
An attempt at a choke charging Marx generator.
2003-01-05: More Marx Generators
Two new prototypes for the New Year.
2002-12-14: New Capacitors!
Some eBay wins pay off and my first serious Marx Generator is born.
2002-12-08: Second Try
The Proof-of-Concept unit gets an extension.
2002-11-03: First Proof-of-Concept Unit
The first Marx Generator I built.
