Balcony Shoot #43 - 9.5mm FeTi Saxon
Date: 2004-06-19
Description
I used a commercial skylighter 2 oz rocket tube (9.5 mm ID, 70 mm long) and commercial saxon tooling from Wolter Pyro Tools.
The tooling was made up custom or me, as Rich doesn't normally stock 2, 4 and 8 oz versions of the saxon tooling. He made me a very nice pair of 2 oz and 4 oz tooling for a very reasonable price.
The clay was my usual wax-treated cat litter. The tube was charged about 5/8th full with FeTi Driver composition and sealed off again with another increment of clay. A small increment of straight meal was rammed as a first fire to ensure I wouldn't be drilling into Ferrotitanium containing composition. The vent hole was 3 mm.
The device was fused with blackmatch held in place with meal/NC priming paste. A 5 mm hole was drilled through the empty part of the tube to take an axle for rotation. A plastic cork was hot glued to the end of the tube for balance.
Comments
Worked great.
Nice even burn, good speed, very visually appealing.
Virtually no nozzle errosion and a reasonable burn time for the size of the device.
Attachments
| title | type | size |
|---|---|---|

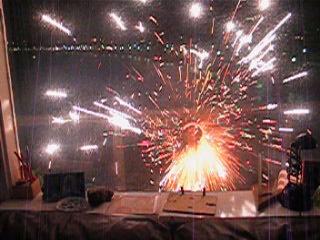

| Video | video/x-msvideo | 3.217 Mbytes |

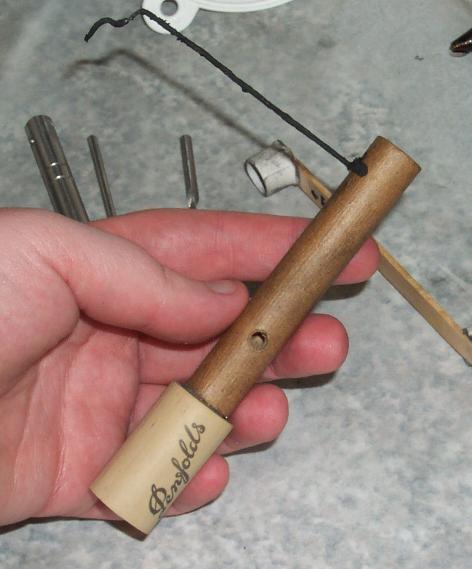

| Pre-Test Picture | image/jpeg | 33.471 kbytes |

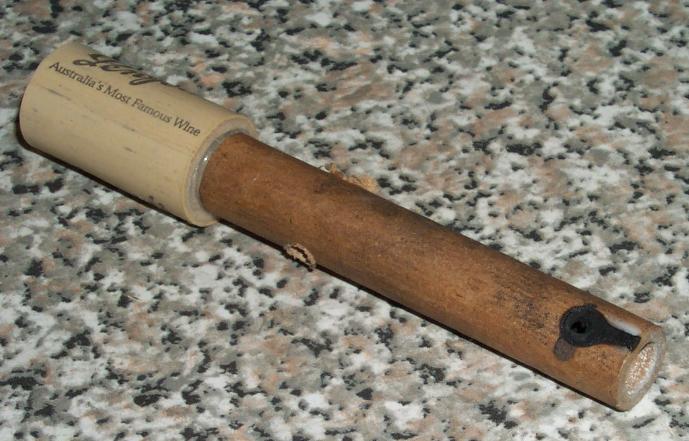

| Post-Mortem Picture | image/jpeg | 61.149 kbytes |
